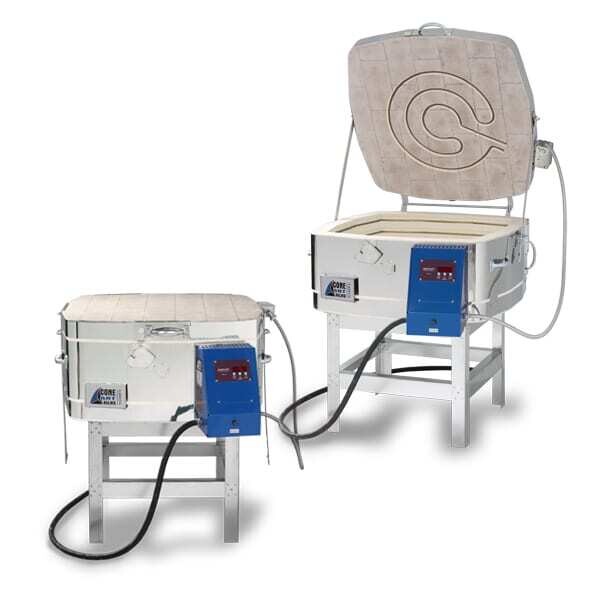

Cone Art 2313G SQUARE | GLASS KILN

C$4 135.00

Controller

B3K (Default)

BV6 (Most popular) (+C$285.00)

Genesis 2.0 (+C$610.00)

Lid Lifter

Lid Lifter (+C$480.00)

Furniture Kit

Furniture Kit (+C$98.00)

In stock: 10 available

Product Details

The model 2313G SQ is a highly versatile model. Capable of firing many small pieces or large individual platters, this is the largest square kiln that Cone Art manufactures. It has elements in the lid and the walls for even firings, and offers a little more volume than a 23” diameter round kiln. Our patented lid lifter is an option available on this model.

2309G SQ – 3.5 Cubic ft
208 or 240 Volts
All 208 or 240 volt models (larger kilns) are supplied with an 8 foot long power cord wired to the kiln but do not have a plug attached. These larger sized kilns are designed to be directly hard-wired to a into an electrical panel
40 Amp breaker required
Kanthal A-1 elements in lid and walls
CSA approved
Fires to 1700°F
Kanthal A-1 element in lid
2 1/2" premium grade firebrick walls
Corrosion resistant stainless steel jacket and fittings
Cone Art patented lid lifter is an option available on this model
Furniture Kit: One 21″ X 21″ square kiln shelf, Three – 1″ posts, 1 – kg kiln wash
Shipping via Transport Truck direct from Cone Art Kilns to your door

Phase	Volt	Inside Dimension	Outside Dimension	Sections	Cubic Feet	Amps	Breaker Required	CU Wire GA(AWG)	Kilowatts	Ship Wt Lbs	Max Temp
1	240	23 X 23 X 13.5	35x41x19.5	1	3.50	30	40A	8	7.20	220.00	1700
1	208	23 X 23 X 13.5	35x41x19.5	1	3.50	35.00	40A	8	7.20	220.00	1700

CONTROLLER CHOICES

The Bartlett 3K (B3K) Controller is a simple 3 button controller that is an inexpensive solution ideal for glass kilns. It will allow you to store up to 4 user defined programs. Glass kilns with a model number prefix of “B3K” have this controller. This is included in the basic kiln and is the "Default Controller" if there is no other choice made.

The Bartlett V6 Controller (BV6) offers precise control and many features not available with other controllers. It comes with preset firing profiles, allowing you to fire by simply entering a cone number, as well as the option of user-defined programs. It will hold up to 6 user-defined programs with up to 8 segments in each program. Or as an option you can combine 2 programs to make one complicated program with up to 16 segments in it. The Bartlett controller has one thermocouple for each circuit in the kiln so it is excellent at ensuring even temperature from top to bottom.

Just like it’s predecessor, the Bartlett Genesis 2.0 Controller (Genesis) uses touch screen technology, graphical displays, has built in diagnostics, and can calculate your cost per firing. Being wifi enabled means available software updates, and communication with your smart phone
